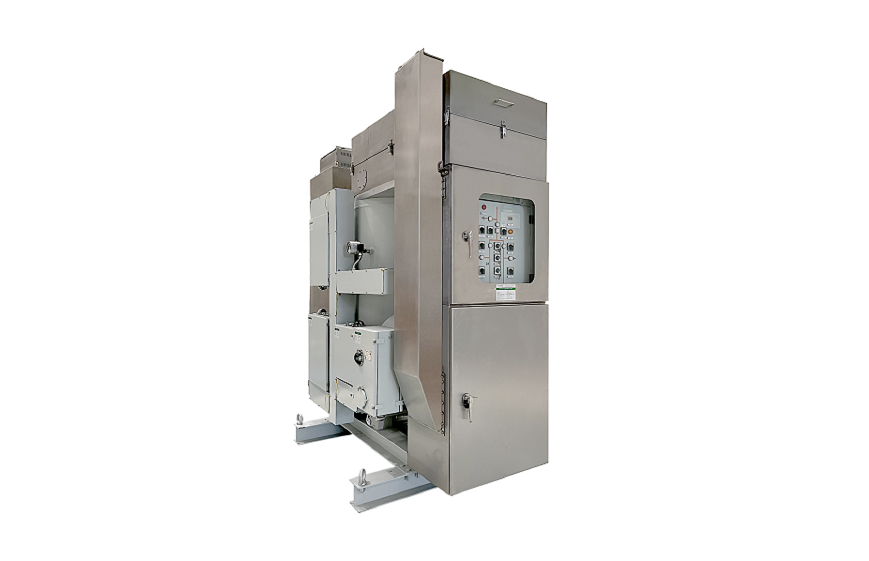

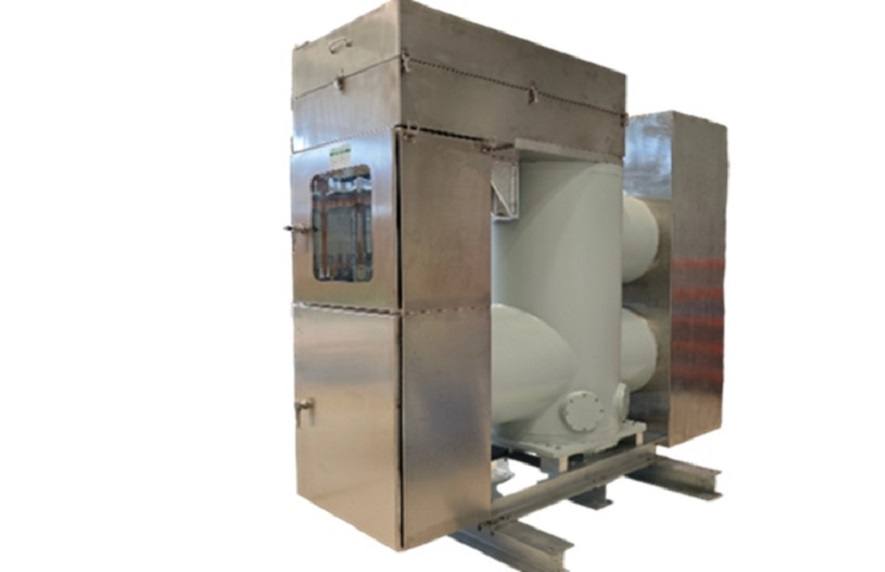

72.5kV GIS Model ZF-72.5(Z)

Model ZF-72.5(Z)/T1250-31.5 is a key solution for supporting carbon neutrality goals. It achieves true zero-carbon operation by utilizing vacuum interrupters and dry air as the insulation medium. This model is suitable for various 72.5 kV applications in offshore and onshore renewable energy plants, including wind turbine towers and photovoltaic power generation and energy storage systems.

Product Features

Modular and Intensive Design

Flexible design is adopted based on the single line diagram of the switchgear
inside the tower and specific project requirements. The GIS meets the space layout
requirements of both the conventional indoor power distribution room and the
outdoor kiosks;
Safety and Maintenance-Free

The use of clean air (a non-fluorinated gas) as the insulating medium has the
lowest requirements for transportation, installation, operation and recycling. No
gas recovery is required, which ensures high operational safety.
Environment Friendliness

With the insulating medium being clean air which is non-toxic, non-flammable,
stable, and free of carbon decomposition risks in the switch or insulating gas
compartments, the GIS has zero greenhouse potential (GWP=0).
